Checchi & Magli Transplanters

Foxdrive R14 Transplanter


This semi-automatic transplanter has been specifically designed for transplanting vegetables , flowers and nursery seedlings with bare roots or peat balled roots with a conical, pyramidal or cubical shape, typically used for the planting of large and small seedlings such as Cauliflower, Cabbage, Tomato, Bare root plants



Fox Transplanter

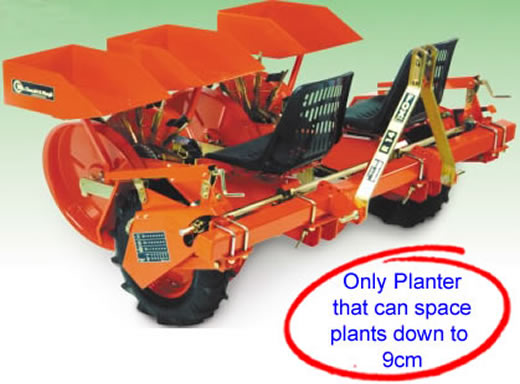

Photograph for illustration purposes - standard specifications may not match those shown.

The transplanter is a modular design.  Each transplanter unit is mounted on a tool bar.  The transplanter machine is configured for planting 1, 2, 3, 4, 6 rows by mounting the desired number of transplanter modules onto a suitably sized tool bar with the module positioned at the desired inter-row spacing.  The tool bar incorporates a driveline which is powered by ground-engaging wheels which ensure the transplanter operation is synchronised with ground travel.  The inter-plant distance is set by the selected gear setting in the driveline mechanism.

FEATURES OF THE CHECCHI & MAGLI FOXDRIVE R14 TRANSPLANTER

DISTRIBUTION SYSTEM

The operator is seated above each transplanter module within easy reach of the plant boxes.  The operator puts the seedlings into the finger grips which gently places the plants into the furrow.

Holder
  • Standard plant boxes for plant storage

DRIVELINE

The ground-engaged wheel provides the driving mechanism for the transplanter system ensuring each planting action is accurately synchronised with the ground travel along the planting beds.
Drive Wheel
  • Ground wheels carry the weight of the machine and drive the planting operation.
Clutch
Hex Drive Shaft
  • Overload safety clutch on driveline protects the entire machine and the planting mechanism if plants or cell material block the machine.
  • Once the blockage has been cleared the safety clutch auto-resets to restart the operation.
  • Heavy duty 22mmHex Drive Shaft across machine.

PLANTING UNIT

The planting unit is mounted on the tool bar with a springframe which provides a tension to counter-balance the weight of the planter, reducing ground pressure, which enables the planter to consistently float along the plant bed.The front press wheel firms the planting zone before the ploughshare creates the furrow into which the seedling is planted in a precise upright position.

The planting mechanism is synchronised with the ground travel to accurately maintain the pre-set inter-plant spacing of the seedling into the furrow in a smooth coordinated action. The trailing packing wheels then press the soil around the seedling.

Front Press Wheel
  • Adjustable Front Press Wheel.
  • Optional disc Kit for High Trash - is shown between front press wheel and ploughshare.
  • Optional clod separator can be fitted before the ploughshare.
Swing Shoe
  • Swing down ploughshare for easy cleaning of soil build up from the seedling cells.
Finger Grip
  • The plant is place in the finder grips before being placed gently in the furrow
Adjustable wheel
  • 3 way adjustment on the trailing packing wheels for all soil conditions
  • The packing wheels maintain accurate planting depth

APPLICATIONS

applications
  • Suitable for plants with bare roots
  • Cabbage
  • Cauliflower
  • Broccoli
  • Lettuce
  • Tomato



Diagram
  • Adjustable from 25cm-90cm
    Between the rows
  • 9 – 63cm
    Between the plants

OPTIONS

Shoe Sizes
  • Different width Ploughshares are available to suit the seedling cell size.
Fertliser
  • Fertiliser Device for Easy Fertiliser Application.
Watering attachement
  • Irrigation Drip Tape Layer.

SPECIFICATIONS

FOXDRIVE R14 1 ROW
FOXDRIVE R14 2 ROW
FOXDRIVE R14 3 ROW
FOXDRIVE R14 4 ROW
FOXDRIVE R14 6 ROW
LENGTH
150
290
290
290
290
WIDTH
150
150
200
250
350
MIN HP
20
25
30
40
60
WEIGHT
185
435
540
665
950

BROCHURE

Click this link to download a brochure.
Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
